Differential Gear Ratio Tag

[RIX260]

I understand that Tiger differentials were fitted with a factory tag that was stamped with the correct gear ratio. Can anyone post a picture of what one of these tags looks like? I've searched the internet but obviously in the wrong places since I have not been able to locate a picture of one. Thanks for any help.
Rick



[Warren]

I have a picture of one. It came from a training seminar of STOA. They said they would be sharing the pictures and information.



[KenF]

Here's a pic of mine. Don't think it has any gear ratio info.
Edit: I guess it is the ring and pinion tooth count: 2.88 ratio.



[RIX260]

Here's a pic of mine. Don't think it has any gear ratio info.
Edit: I guess it is the ring and pinion tooth count: 2.88 ratio.

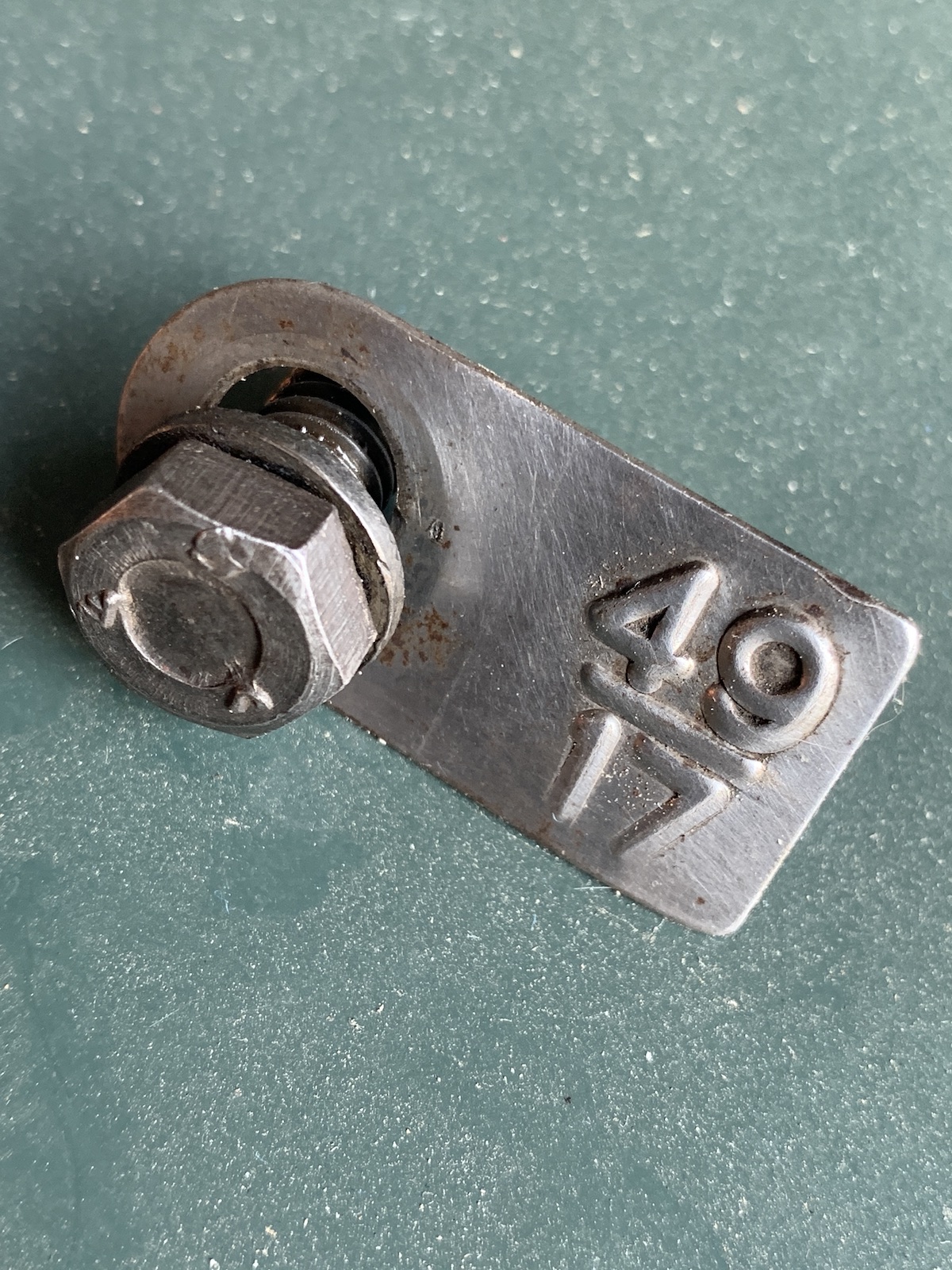

View attachment 14308

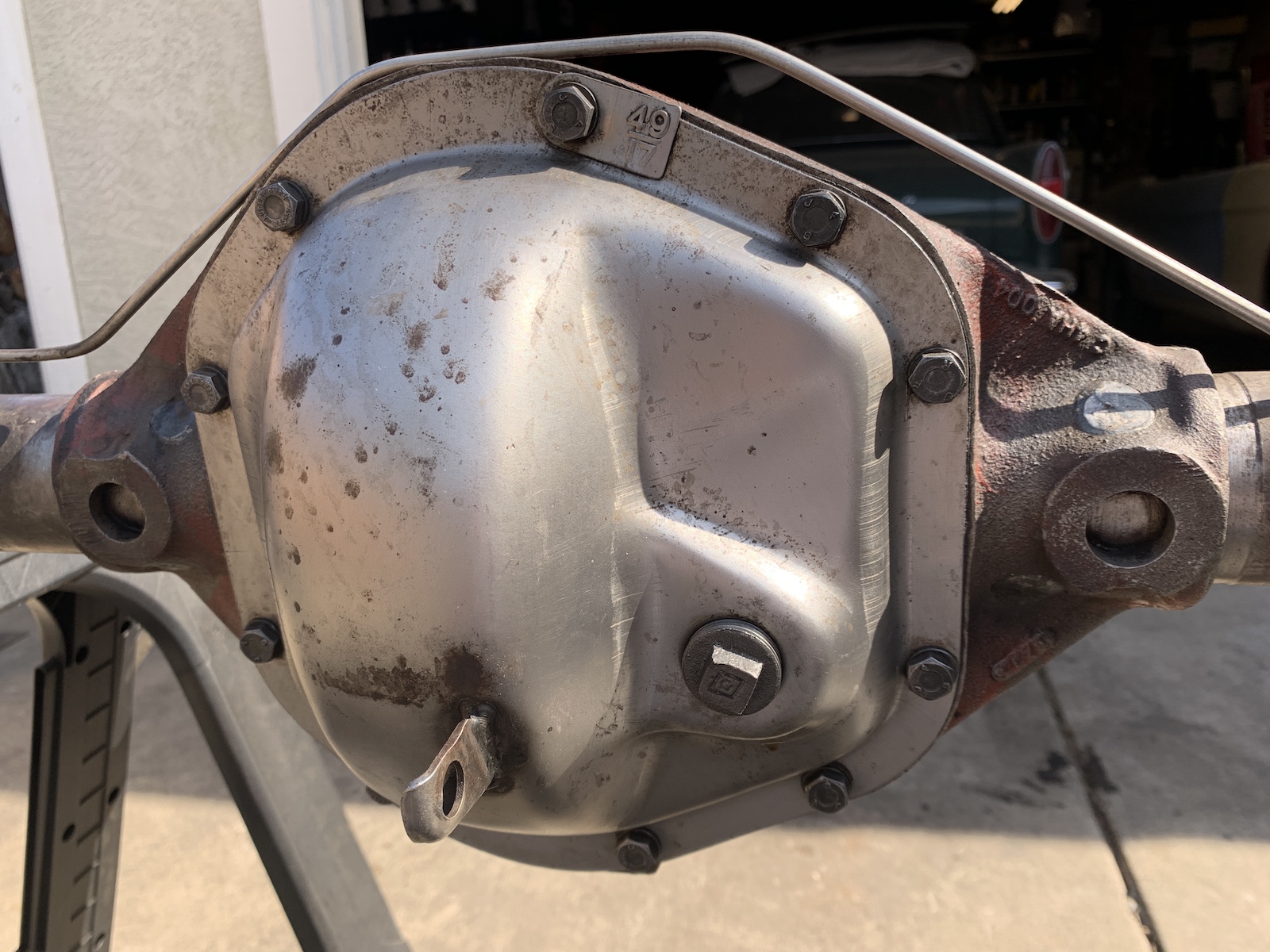

View attachment 14309

Thanks Ken. Does your Tiger have a standard differential? 260 or 289? Appreciate the info.
Rick



[KenF]

Yeah, B9471532 has a stock open rearend, with a stockish 260. Rear end stamping matches factory ledger.
Ken



[66TigerMK1A]

Yeah, B9471532 has a stock open rearend, with a stockish 260. Rear end stamping matches factory ledger.
Ken

My housing has correct stamping on it but everything else was changed... it has 3.54 gears and a tag that says 'twin traction' ( Studebaker ) and the yoke is also different as there's no flange!



[RIX260]

My housing has correct stamping on it but everything else was changed... it has 3.54 gears and a tag that says 'twin traction' ( Studebaker ) and the yoke is also different as there's no flange!

Thanks for the info.
Rick

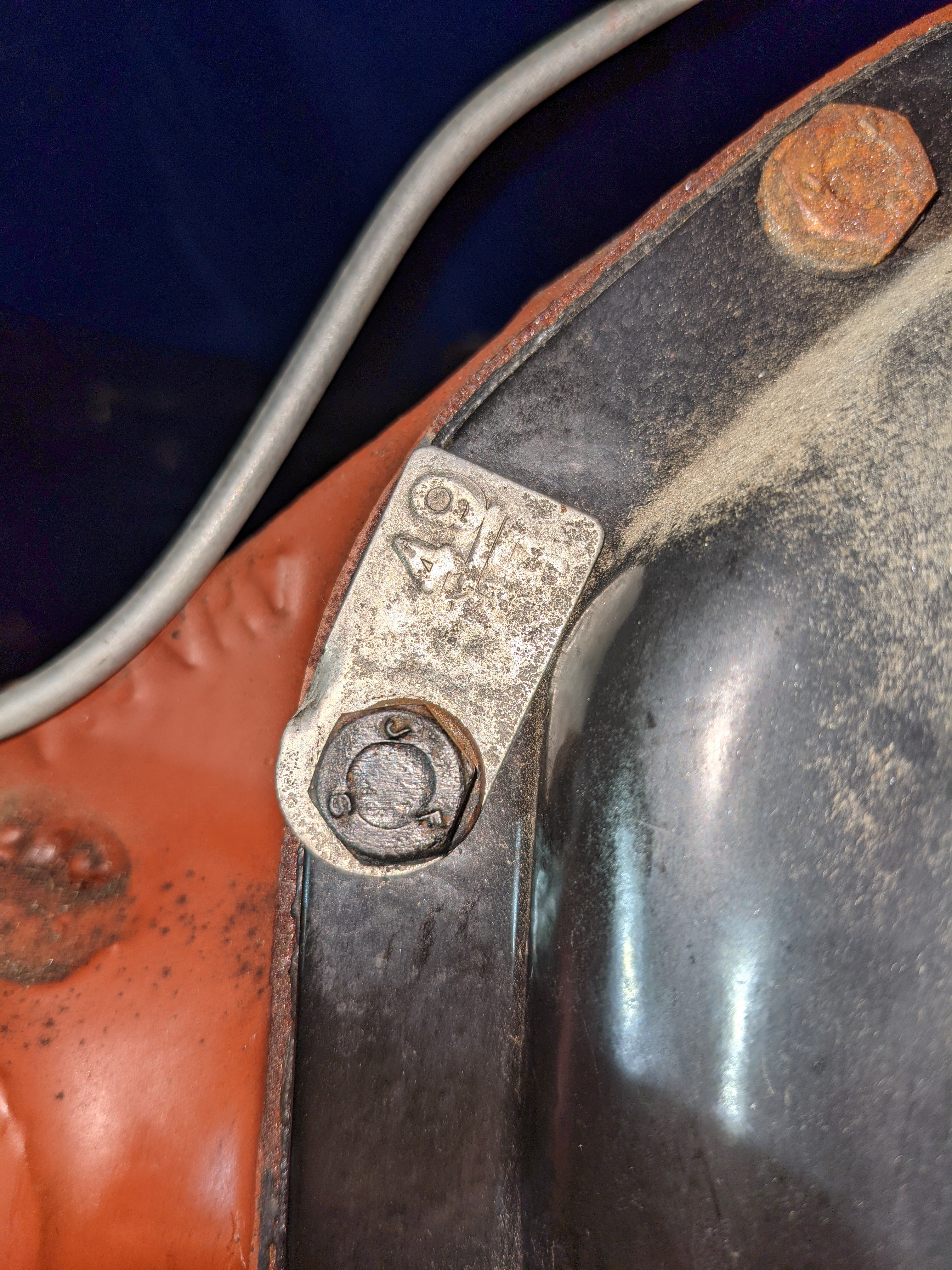

[o2bdriving]

From my MKII. Was it confirmed the 49/17 indicates 2.88 gear ratio? The arithmetic seems solid 49 ÷ 17 = 2.88. I was told that there'd be no math today.
