Hardtop Quarter Windows

Jbetz812

Jbetz812

Silver forum user
CAT Member
Messages
74

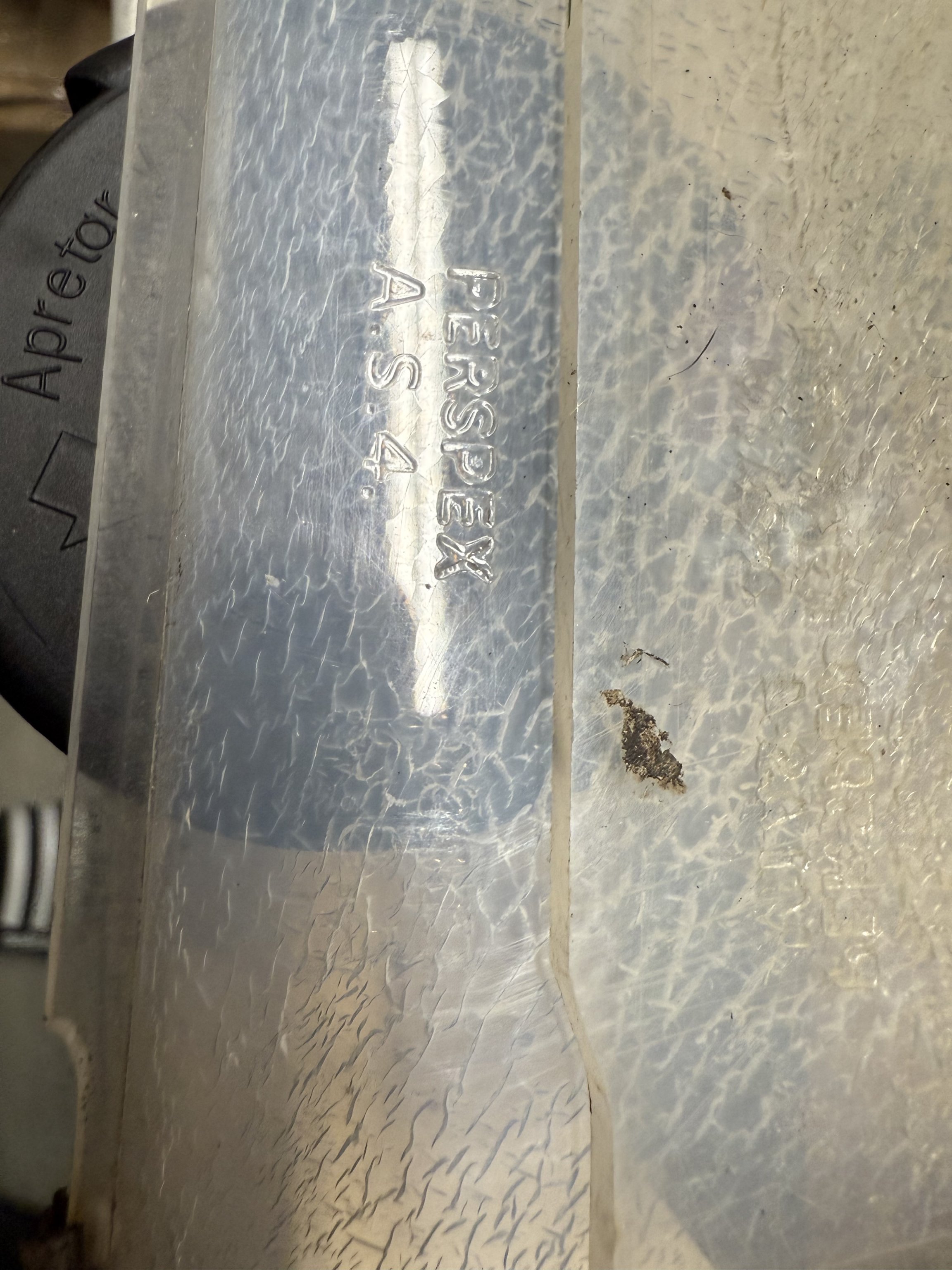

I was working on a couple sets of hardtop side windows and noticed that the “PERSPEX” stamps on some are “A.S.4” and some have “M1AS-4”. One style is stamped to read on the stamped side and the other is reversed and stamped on the opposite side you would read.

I have to ask if anyone knows the history?

michael-king

michael-king

Gold forum user
CAT Member
Messages
4,288
They are the original windows, and the rear window was also perspex

While we often say Perspex as a description for a clear polycarb it's actually the brand of the product from original company that made it... Much like saying a "biro" for a ball point pen... Or Hoover for a vacuum etc

Someone a whirl back acid etched the original perspective logo and specification marking onto their repro windows.

Austin Healer

Austin Healer

Gold forum user
Messages
1,548
Jbetz812 said:
I was working on a couple sets of hardtop side windows and noticed that the “PERSPEX” stamps on some are “A.S.4” and some have “M1AS-4”. One style is stamped to read on the stamped side and the other is reversed and stamped on the opposite side you would read.

I have to ask if anyone knows the history? View attachment 20391View attachment 20392
Click to expand...
In my experience the earlier cars had the windows marked "AS-4" and later cars had the M1AS-4... I recently restored a couple early hardtops identified by the lack of the clip for attaching the rubber straps (AT70 from Sunbeam Specialties). Both tops had windows marked AS-4. I also restored a couple of Mk2 hardtops (large buttons for the qtr. window latches) and both had windows marked M1AS-4.

I do not know when the change was definitively made.

65beam

65beam

Gold forum user
CAT Member
Messages
1,936
Austin Healer said:
In my experience the earlier cars had the windows marked "AS-4" and later cars had the M1AS-4... I recently restored a couple early hardtops identified by the lack of the clip for attaching the rubber straps (AT70 from Sunbeam Specialties). Both tops had windows marked AS-4. I also restored a couple of Mk2 hardtops (large buttons for the qtr. window latches) and both had windows marked M1AS-4.

I do not know when the change was definitively made.
Click to expand...
As a side note for folks working on replacing the side windows, The large buttons for the windows have been reproduced and are currently listed for sale on E Bay.

RIX260

RIX260

Gold forum user
CAT Member
Messages
319
H

HolyCat

Gold forum user
CAT Member
Messages
1,300
RIX260 said:
For those looking for the NEW window buttons on eBay, here is the listing: (No relation to the SELLER)

https://www.ebay.com/itm/375641842172_skw=sunbeam+alpine+hardtop+window+buttons&itmmeta=01JEW1NB27F6B5DN9VKVQ9AYCC&hash=item5775ffa1fc:g:SgcAAOSwDdNm4MBN&itmprp=enc:AQAJAAABAHoV3kP08IDx+KZ9MfhVJKny/zXxnhK3l4ux8mYrjXPbMHWIPu1LEu0pFJ5+sxVjBkY+ubGRdXjTfZNA9ivNu9H8gkFXZYLiwzg2mSXusDK6XQ6mX9mMteaswqf0y0wBU21/TgiLeNH/39DbL38QvL0YLzvANBfy2zEAb8Kwq02hWo2dwspbSCYMp0TT+0So/GjdwnAJF5HtU6SMukd5i5HeQz3YI1vDc+JSk4KdMqA/RoUxkXlRb7geM8Zq9+kwEq4t2UpIZUQ+7dQN6jja9LGxWTTrKLnqCsrzQW1BXCB67BTBufcaJzFXu4349ULpEx1/JIJBYKioKQDxeOqcBDw=|tkp:Bk9SR66x1YH3ZA

It's hard to believe that eBay needs a search code with 500 characters!
Rick
Click to expand...
Rick,

Thanks for the info, but when I tried your link, eBay gave me an error page, saying that the page could not be found. Maybe the listing expired.

RIX260

RIX260

Gold forum user
CAT Member
Messages
319
HolyCat said:
Rick,

Thanks for the info, but when I tried your link, eBay gave me an error page, saying that the page could not be found. Maybe the listing expired.
Click to expand...
Strange. I just copied their listing data. The listing has not expired. The eBay item number is 375641842172. Trying searching that number in the eBay search bar.
