Tiger Wiring Diagram

Warren

Warren

Gold forum user
Messages
3,872

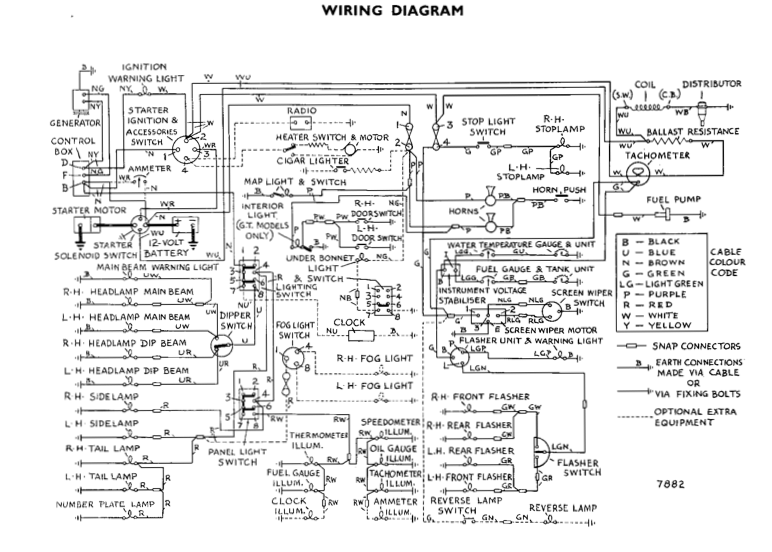

Got a PM the other day asking for this. Both came from a basic search, the first is a copy of the shop manual


Attachments

  • Tiger Wiring Internet.png
    Tiger Wiring Internet.png
    215.5 KB · Views: 1,058
  • tiger_wiring_diagram.JPG
    797 KB · Views: 1,171
Warren said:
Got a PM the other day asking for this. Both came from a basic search, the first is a copy of the shop manual
Click to expand...

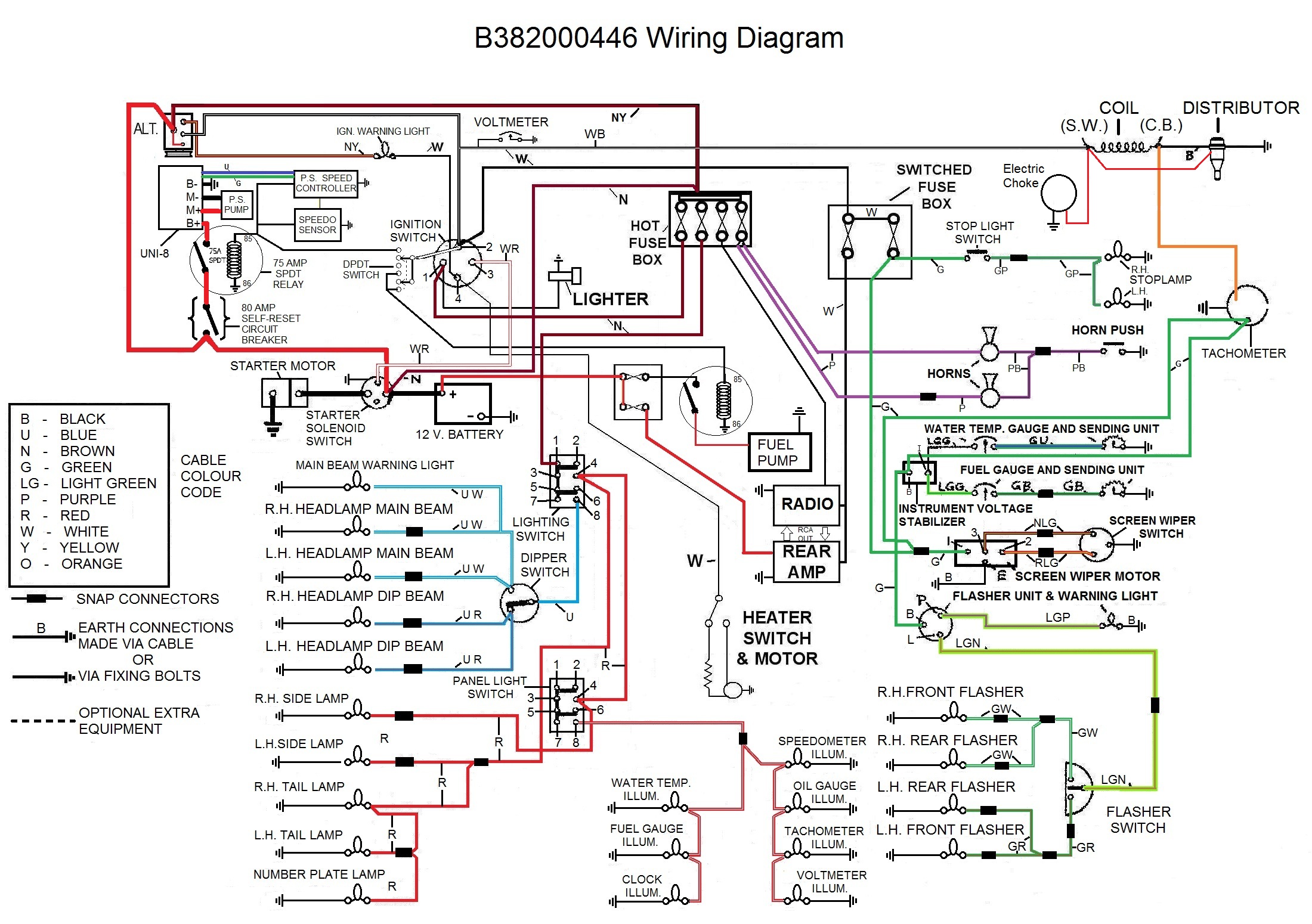

Hey Warren... second one is mine :rolleyes:
Not quite stock wiring :Owith all the 'extra' electric power steering wiring etc. etc. :eek:



Here's a couple of 'colorized' diagrams for 'stock' MK1 and MKII


Attachments

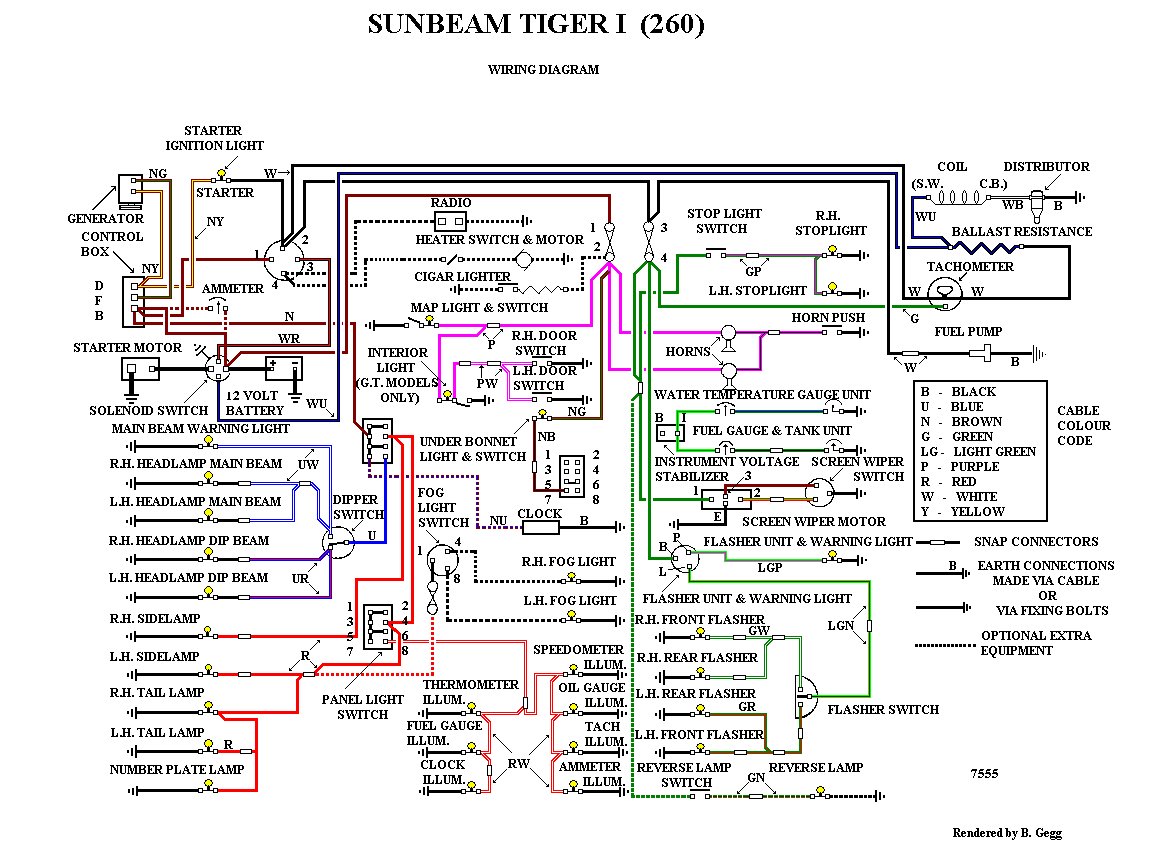

  • Tiger Mk1 wiring diagram.jpg
    Tiger Mk1 wiring diagram.jpg
    226.6 KB · Views: 1,183

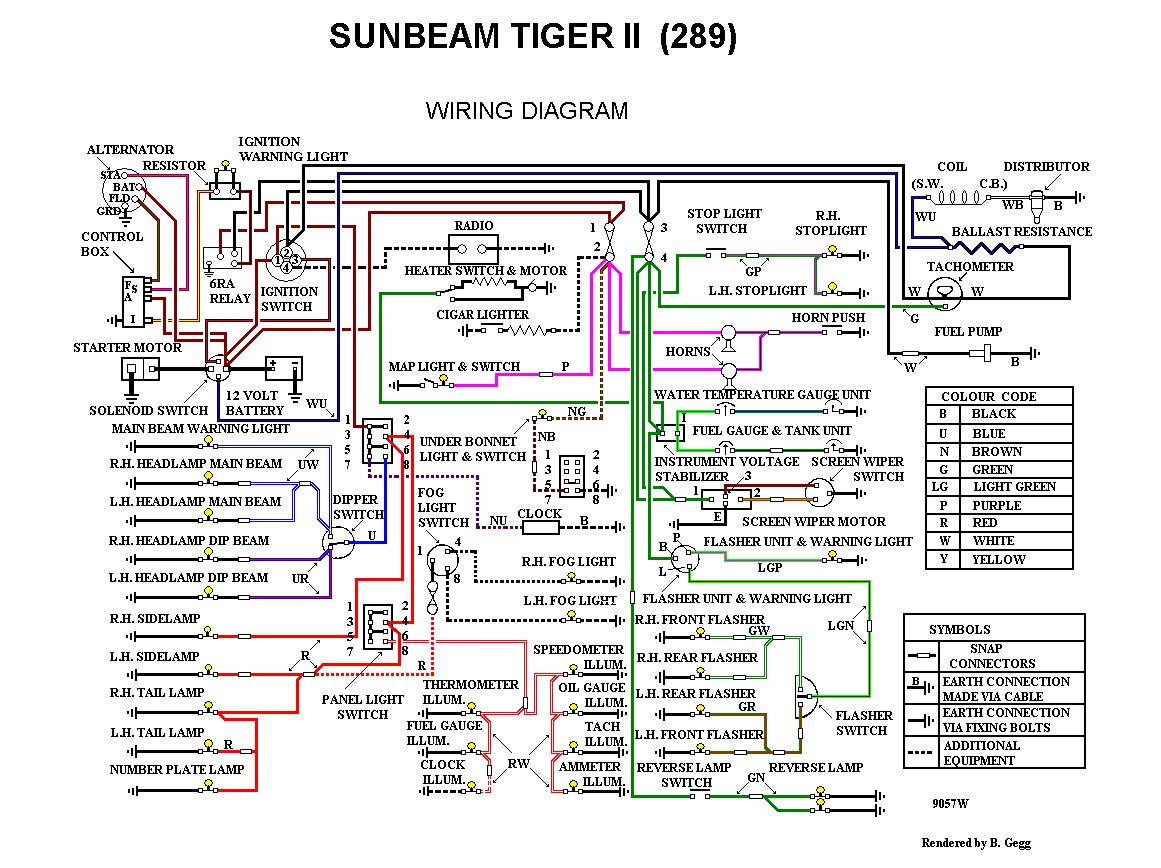

  • Tiger MKII wiring colour.jpg
    Tiger MKII wiring colour.jpg
    236.7 KB · Views: 874
