Wanted Looking for SU fuel pump fitting

[Klaus and Cary]

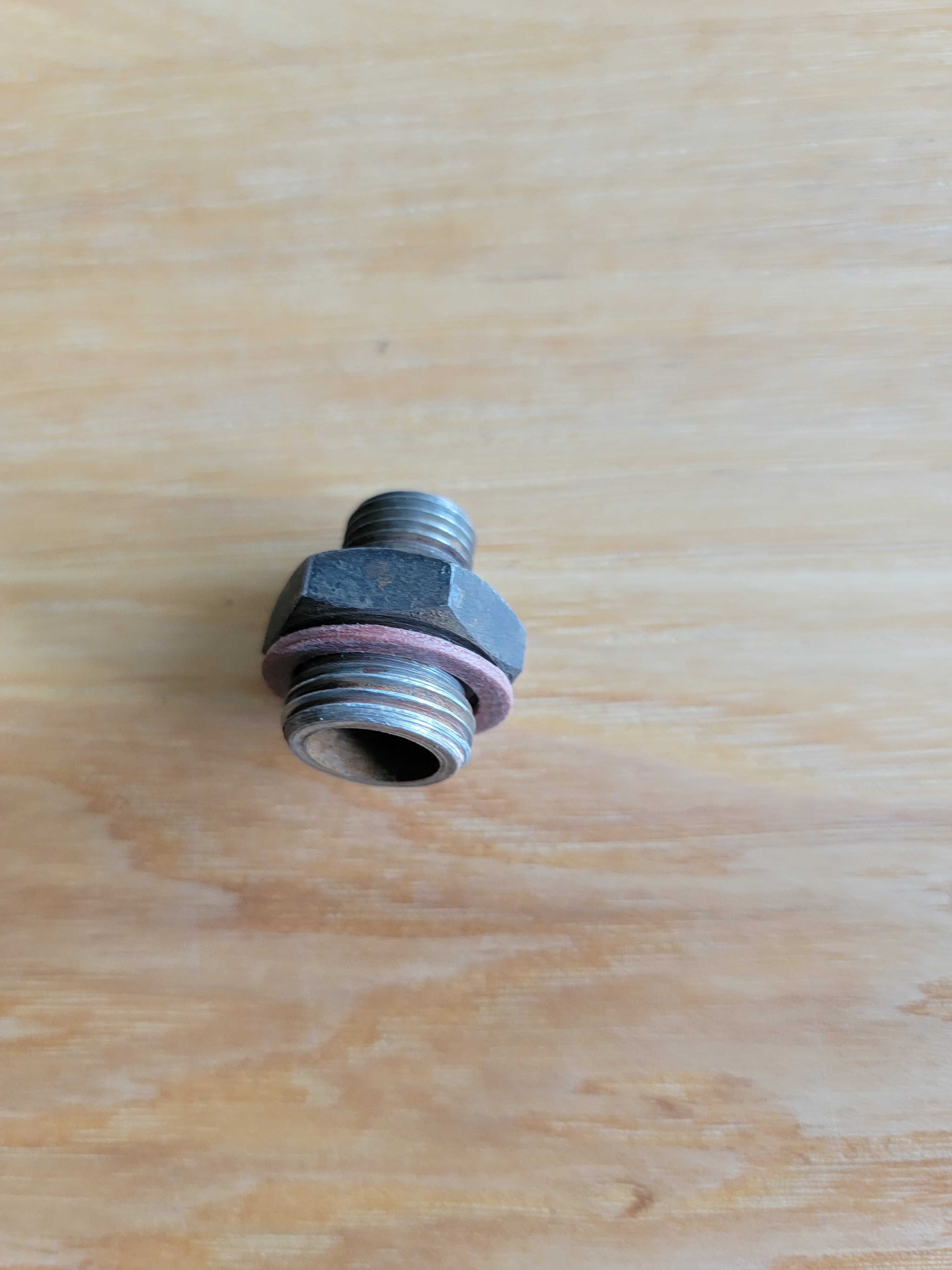

Does anyone have either a source for the SU fuel pump male to male fitting, or an extra they do not need? I have one with the fuel pump that came with the car, but need a second. From the little bit of research I have done they are 3/8" BSP male by 1/2" UNF male.

If these are NLA, I may see about having one made.

Thanks,
Klaus



[Bryan]

I think rick sells them- if not I have a few- ricks sometimes need tp drilled out a little



[Klaus and Cary]

I think rick sells them- if not I have a few- ricks sometimes need tp drilled out a little

They are on back order unfortunately. When we talked to Kelly on Friday she did not know if/when they would be getting any in.

Figure out what shipping is to 94925 and what you would want for one and I'll toss in some extra beer/wine$$. Then I have to convince someone I know with machine tooling to make one for me lol
Klaus



[pfreen]

Are you describing the oring fitting on the discharge and suction side of the pump.



[Klaus and Cary]

Are you describing the oring fitting on the discharge and suction side of the pump.

Yes, this fitting.



[pfreen]

I bought new ones for like $10. The part number is 1003-08L-06. https://shop.hoseandfittings.com/catalog/Fitting/Steel/Metric_Compression/Straight/1003<br>COMP<br>MBSPP/1003-08L-06.html

The 3/8" fuel line was close enough to the 10mm fitting and the ferrule compressed and sealed fine.

Let me know how it works out.



[Bryan]

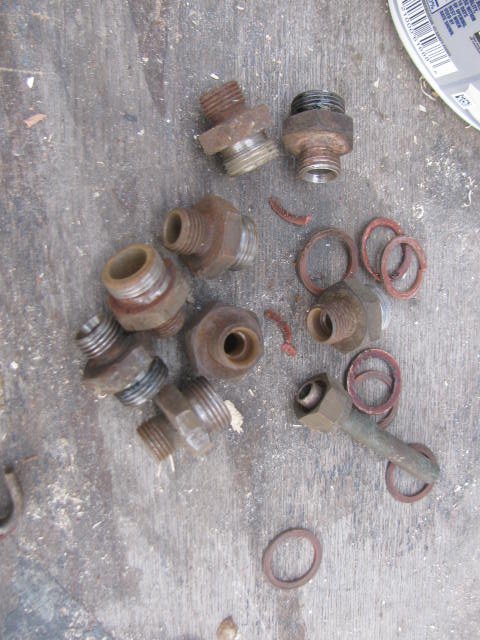

mine have re-plated do you want one or 2 gasket also?



[Klaus and Cary]

mine have re-plated do you want one or 2 gasket also?

View attachment 17129

Just 1, no gasket. Thanks,
Klaus



[0neoffive]

mine have re-plated do you want one or 2 gasket also?

View attachment 17129

Hi Bryan: How many $$$ for a pair? I would like to hand them off to both our machinists for duplication.



[Bryan]

I'm looking for them- they are here- I also have a pair that are not plated-note rick does have them but I think they need to be drilled a little larger? $40 plus ship for those ones
